ROLLCAGES

!

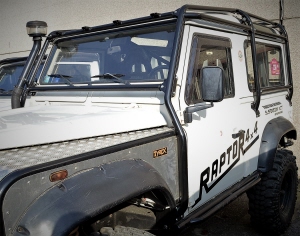

EXTERNAL ROLLCAGE TYPE B FOR DEFENDER 90 SW

01107
Weight: kg

100% Made in Raptor 4x4 factory.

Raptor 4x4 is owner of CSAI licensce of RollCage manufacturer, roll cage is totally developped on Defender 90 station wagon model, all parts are fitted on the chassis front/middle/rear.

Main tubes 42X3 mm, 6 fitting points to chassis, with 4 points light carrier on the front top tube.

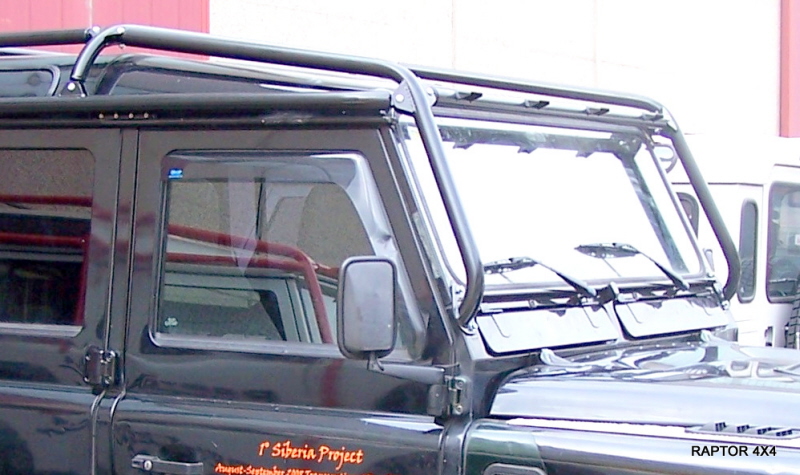

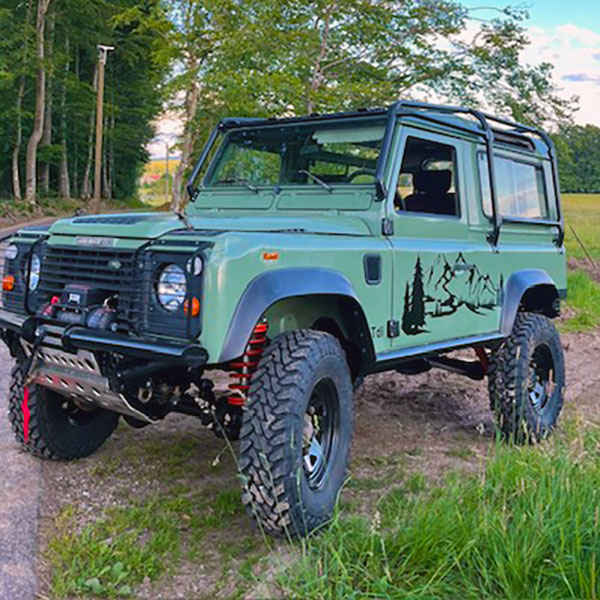

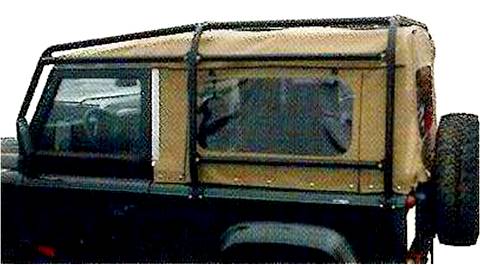

EXTERNAL ROLLCAGE TYPE A FOR DEFENDER 90 SW

01106
Weight: kg
BOLT IN VERSION.

Main tubes 42x3 mm,  4 fitting points to chassis.

In the front part stop on windscreen carrier, suitable for station wagon models, and softops.

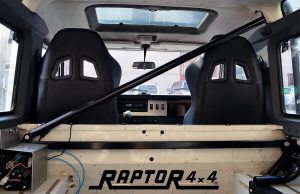

ROLLCAGE INTERNAL DIAGONAL

011067K
FOR RAPTOR 4X4 EXTERNAL ROLLCAGES.

EXTERNAL ROLL CAGE FOR DEFENDER 90 PICK UP

01105
Weight: kg
Main tubes 50x3 mm, 50X3 mm/ 50X2 mm, 6 fitting points to chassis

EXTERNAL ROLL CAGE FOR DEFENDER 90 PICK UP 60X3 TUBE

01105A
Weight: kg
main tube 60x3 mm, 6 fitting points to chassis.

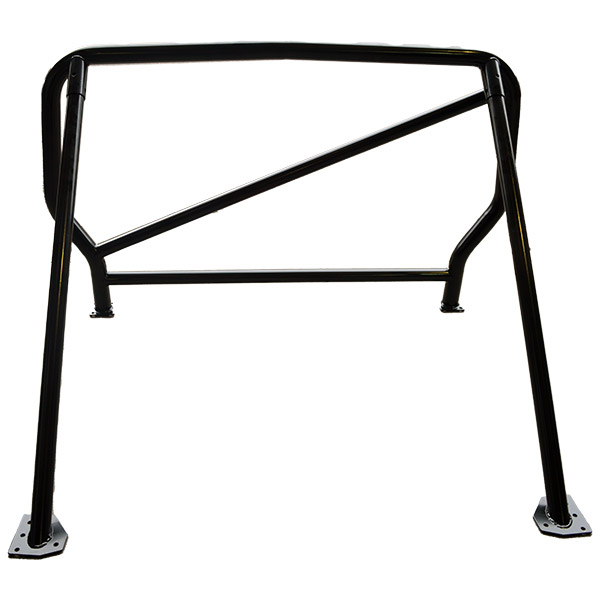

EXTERNAL REAR ROLL CAGE DEFENDER PICK UP

01105B
Weight: kg
Raptor 4x4 product.

Made up by main tube d.60mm; very heavy duty cage for all uses.

Complete of 4 brackets for bolt on fitment to the chassis.

INTERNAL REAR ROLLCAGE "RACING VERSION"

01108
With 4 fitting points to the chassis and more 2 to safety belt fitting, this rollcage is very HD protection, giving a real safety tube cage in off-road contest.

EXTERNAL ROLLCAGE "SPECIAL EDITION" FOR DEFENDER 90 PICK UP

01109
All tubes 60X3, 6 fitting points to chassis.

EXTERNAL ROLLCAGE TYPE A FOR DEFENDER 110

02101

BOLT IN VERSION

main tubes 42x3 mm, 4 fitting points to chassis

EXTERNAL ROLLCAGE TYPE B FOR DEFENDER 110

02102
BOLT IN VERSION
main tubes 42x3 mm, 6 fitting points to chassis

INTERNAL/EXTERNAL HD ROLL CAGE FOR DEFENDER 90 SW

01104
Weight: kg

Raptor 4x4 product.

Main tubes 50x2 mm internal/ 42x3mm external, 6 fitting points to chassis.

Internal to the rear, external to the front, special design for Defender 90 SW.

INTERNAL REAR ROLL CAGE FOR DEFENDER 90 SW

01101
01101
main tube 50x2 mm, 4 fitting points to chassis
