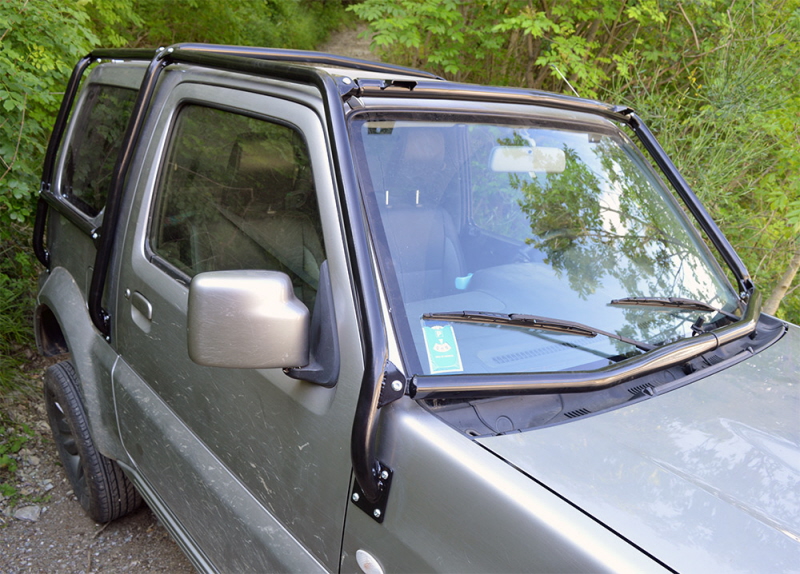

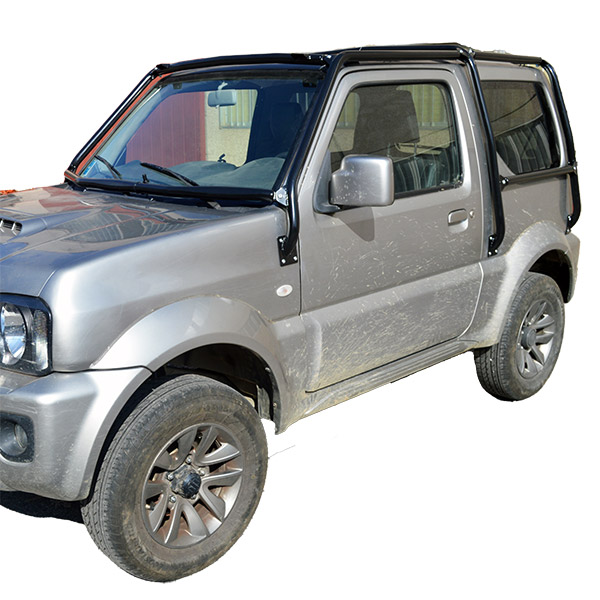

External rollcage for all Suzuki Jimny models up to 2018, totally manufactured in 40x2mm tubes.
Rollcage structure is totally linked to the car chassis, in 6 different points (2 front, 2 middle, 2 rear) by steel plates, and bolt on the body by high rate bolts.
Rollcage include a protection tube low windscreen and another on on top windscreen with 2 plates as led or light carrier. This cage is developed to give max strenght and reliability reducing as possible sizes.
Developed for offroad used, protect car body and passengers in case of rolling.
Black powder coated, ready to fit.
For perfect job it's necessary some weldings in body plates of car, in front and middle of vehicle.
Optional:

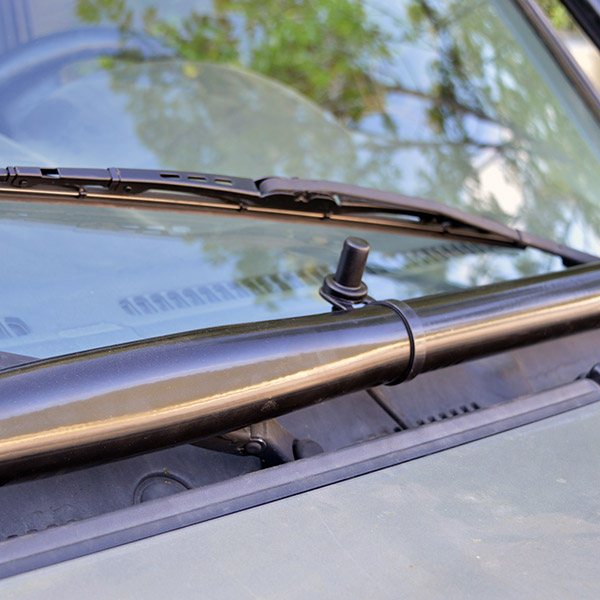

- Windscreen washer kit, nipple and plate, to fit on low windscreen tube
- extra rear fitting point to the chassis, this part do not allow to fit safety belts anymore in original position, need to be fitted in another point; this kit is already included in the package, it's customer choice if use or not
Raptor 4x4 is owner of CSAI licensce of RollCage manufacturer.
